Windsock

WINDSOCK

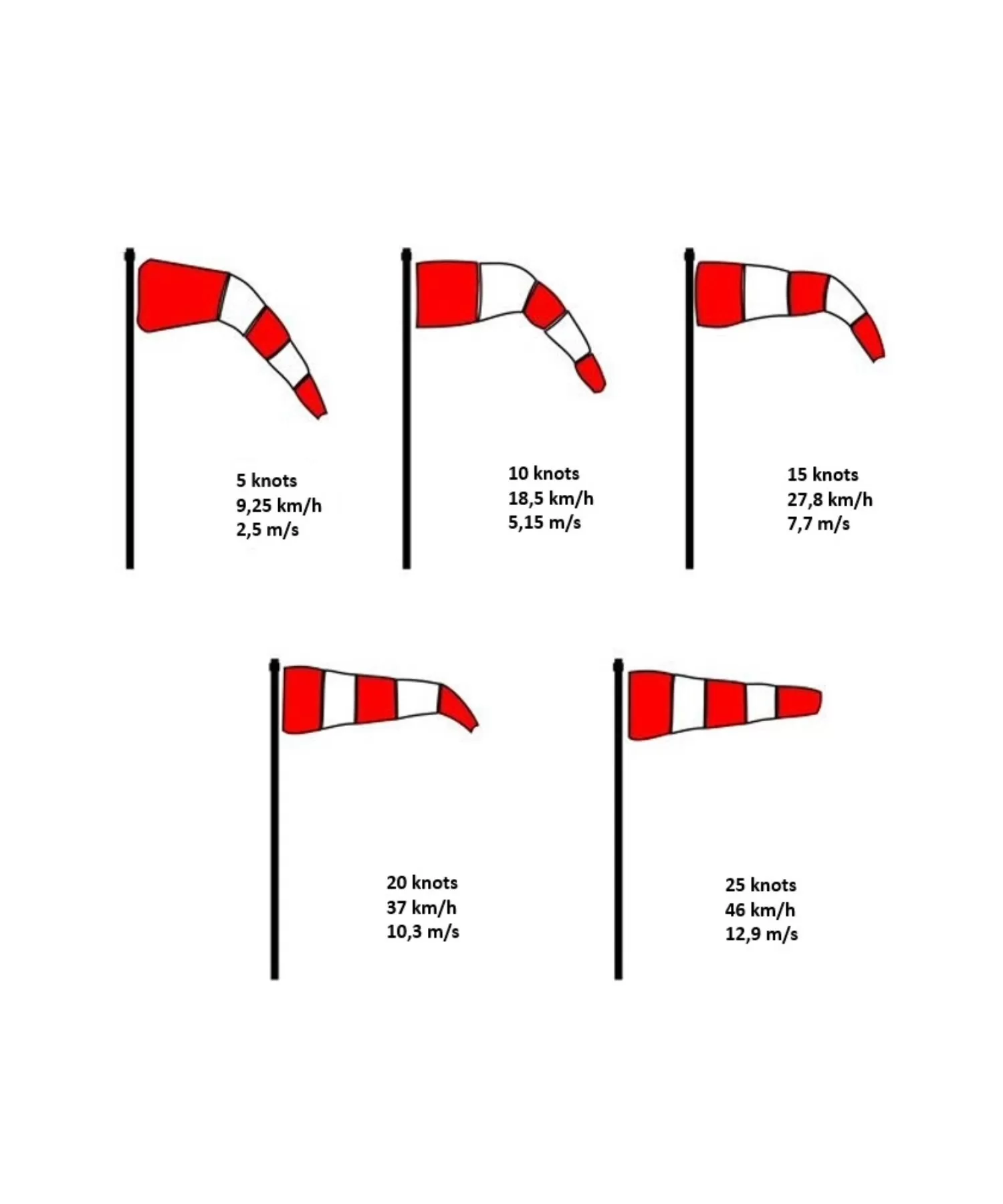

A windsock is a conical device used to indicate wind direction and estimate its speed.
It is primarily used by airports and other airborne recreational activities, but also by factories handling chemical products (CNESST safety regulations) and by farmers.

Regular inventory

The 13 in x 5 ft Orange/White windsock For aviation and meets firefighter requirements

Features

• Fabric, DuPont SolarMax™

Available sizes

• 8 in W x 3 ft L (203 mm x 914 mm)
• 13 in W x 5 ft L (330 mm x 1 524 mm)
• 18 in W x 6 ft L (457 mm x 1 828 mm)
• 18 in W x 10 ft L (457 mm x 3 048 mm)

Other sizes and colors available - by special order

Available colors

• Orange/White (Striped)
• Orange - Plain

WINDSOCK BRACKET

The bracket is designed for installing windsocks in various formats. It is designed to be installed in a tube with an external diameter of 2 in dia. ; allowing the windsock to rotate with the wind and thus control wind direction.

Regular inventory

Other sizes available - by special order

Features

• 6063-T5 aluminum, welded
• 2 in x 1/4 in UHMW washer
• 1,75 in dia. x 2,5 in L, UHMW sleeve
  • 8 in dia. 3/4 in pivot
  • 13 in dia. 3/4 in pivot
  • 18 in dia. 3/4 in pivot

Available dimensions

• 8 in diameter (203,2 mm)
• 13 in diameter (330 mm)
• 18 in diameter (457,2 mm)

Options

• Flagpole
  • Type MC or MA with concrete base
• Freestanding roof mount with hardware

DOCUMENTS

Technical sheets & Installation manuals
