Wall Mount Support 45D

Wall Mount - 45 Degrees

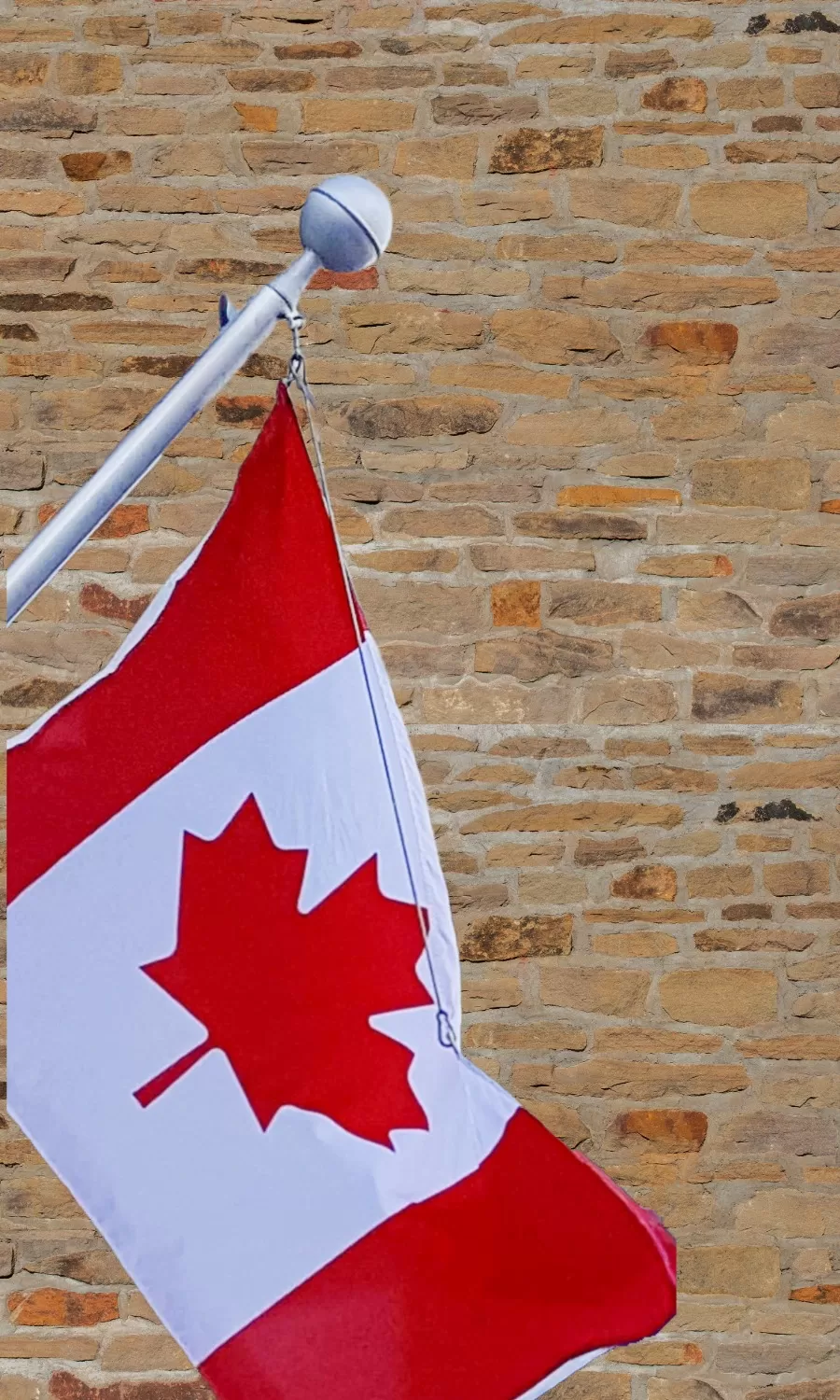

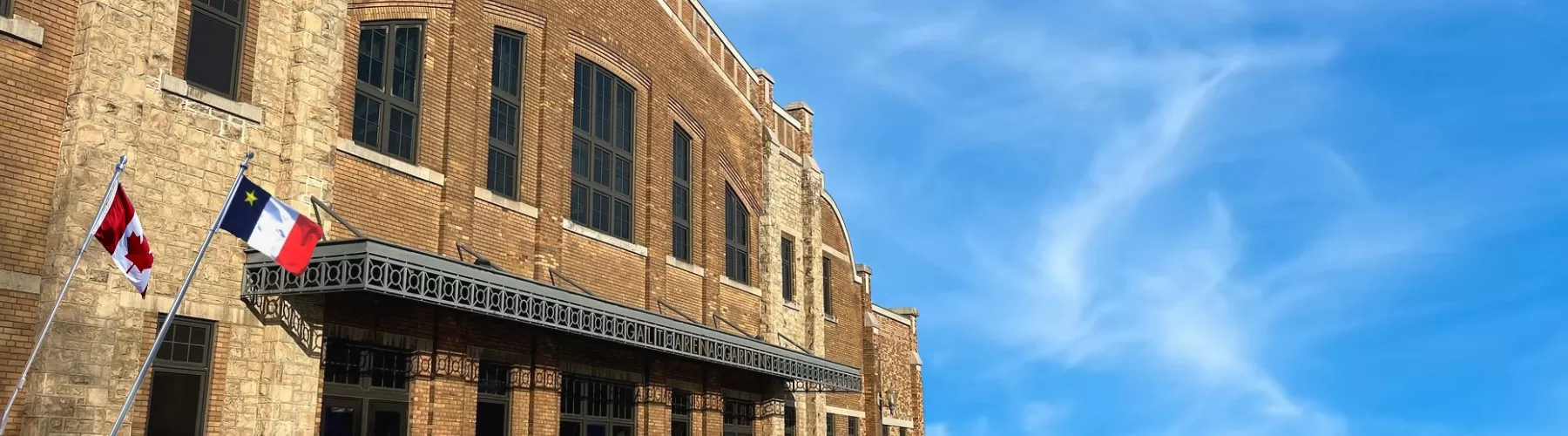

This 2 in diameter bracket (50.8 mm) allows you to install a flagpole at a 45-degree angle on most vertical surfaces. It can accommodate a pole up to 6 ft or 8 ft long. Adding an anti-wrap rod is a practical solution to ensure proper flag display; it prevents the wind from wrapping your flag around the pole. For a complete installation, consider adding the grommet and reinforcing band to your flags.

Regular inventory

FEATURES

• Welded 6061-T6 aluminum plate
• Designed to hold a 6 ft L or 8 ft L x 2 in dia, external drum
• Secures with 4 screws at the corners

Plan for the necessary hardware based on the wall surface area.

Dimensions

Length: 10 in (254 mm)
Width: 10 in (254 mm)
Thickness: ¼ in (6 mm)
Diameter (holes): ⅜ in (10 mm)

Pole - Tube

Dimensions

• Length: 6 ft (1 828,8 mm)
  • Designed for a flag up to 54 in W x 36 in H (1 371,6 mm x 914,4 mm)
• Length: 8 ft (2 438,4 mm)
  • Designed for a flag up to 72 in W x 36 in H (1 828,8 mm x 914,4 mm)
• Inner diameter: 1 ⅝ in (41 mm)
• Outer diameter: 2 in (50,8 mm)

The pole length must be appropriate for the length of the flag being installed. There is a maximum dimension for both the pole and the flag, for safety reasons, taking into account your usual winds and weather conditions.

Options

• Anti-wrap system on pole
• Anti-wrap system on flag
• External halyard system
• Country or provincial flag
• Custom flag
• Black tie (mourning)
• Painting

Several country flags - Regular inventory

DOCUMENTS

Technical sheets & Installation manuals
